Simpson Strong-Tie RCKW3-R10 RCKW 3-in. Kneewall Connector Clip (Qty-10)
4.0 (44 items)
Limited Time Sale$42.94 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215696943 | Release Date | 2026/04/12 | List Price | $28.62 | Model Number | 215696943 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

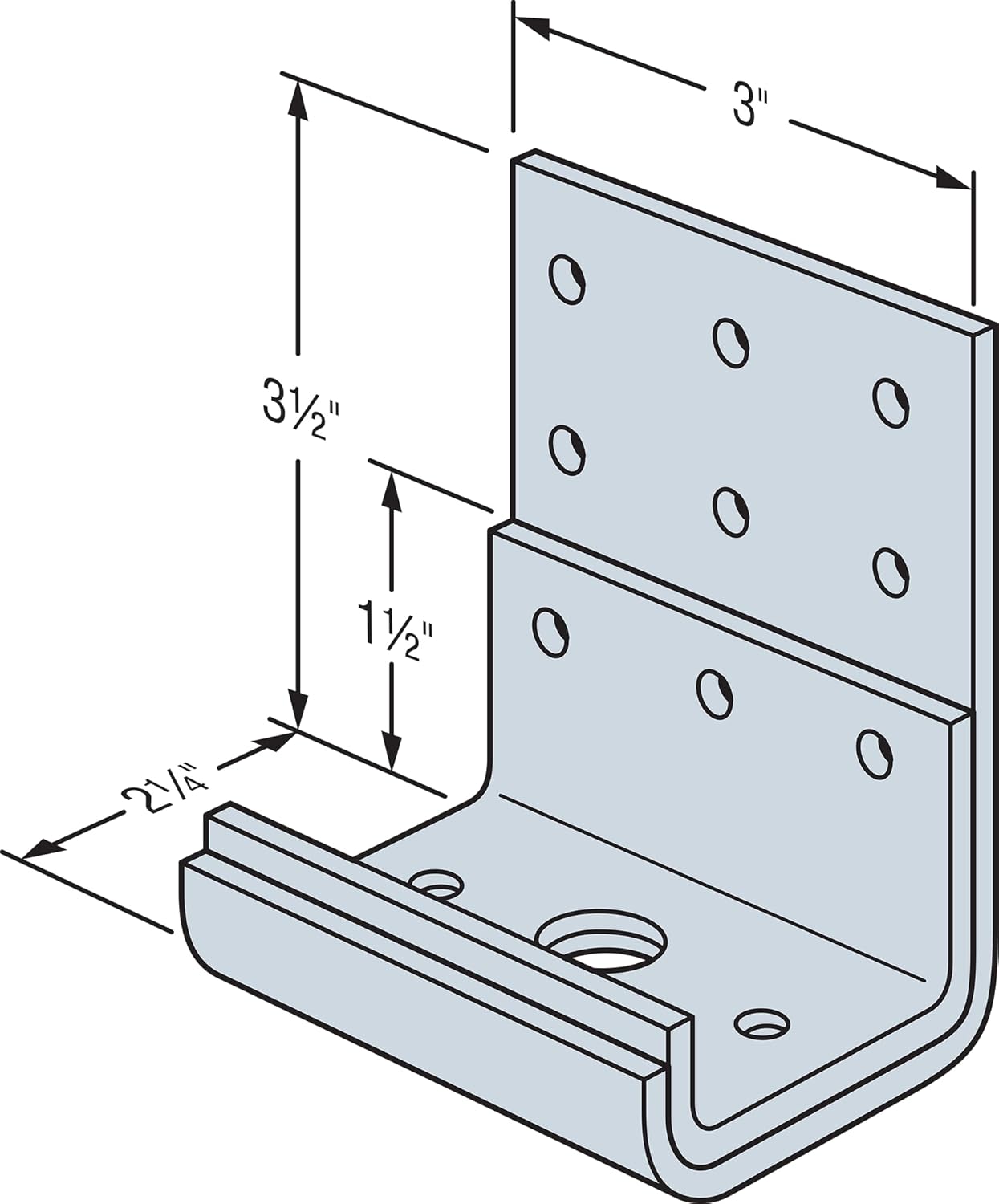

This knee wall connector is a heavy 7-gauge rigid connector that has been developed to resist overturning moment at the base of exterior knee walls and parapets as well as interior partial-height walls or overhead ribbon window conditions. These connectors offer a unique small and large anchor-hole pattern that permits anchorage to both concrete and structural steel.
- RCKW3 has a large single bolt hole in the center for 3-5/8 in. framing
- Anchorage legs incorporate stiffened flanges, improving overturning moment resistance
- Large-diameter anchor hole accommodates 1/2-in. diameter concrete screw anchors and wedge anchors, such as the Simpson Strong-Tie Titen HD heavy-duty screw anchor and the Strong-Bolt 2 wedge anchor
- Additional smaller-diameter anchor holes enable attachment to structural steel through use of #12 self-drilling screws
- Attachment to CMU can be achieved with Titen HD or Titen Turbo concrete and masonry screw
| UPC | 707392185796 |
|---|---|
| Brand | Simpson Strong-Tie |
| Color | Silver |
| Size Name | One Size |
| Item Shape | Wedge |
| Unit Count | 1.0 Count |
| Item Weight | 10 Pounds |
| Thread Size | #0-80 |
| Finish Types | Silver |
| Manufacturer | Simpson Strong-Tie |
| Fastener Type | Bolt, Wedge |
| Item Diameter | 0.5 Inches |
| Material Type | Steel |
| Item Dimensions | 10.5 x 8 x 4.5 inches |
| Number of Pieces | 10 |
| Screw Head Style | Flat |
| Compatible Groove Diameter | 0.5 Inches |
| Global Trade Identification Number | 00707392185796 |
